Apollo Ultrasonic Visual Oil Tank Gauge

Description

Apollo Ultrasonic Visual Oil Tank Gauge

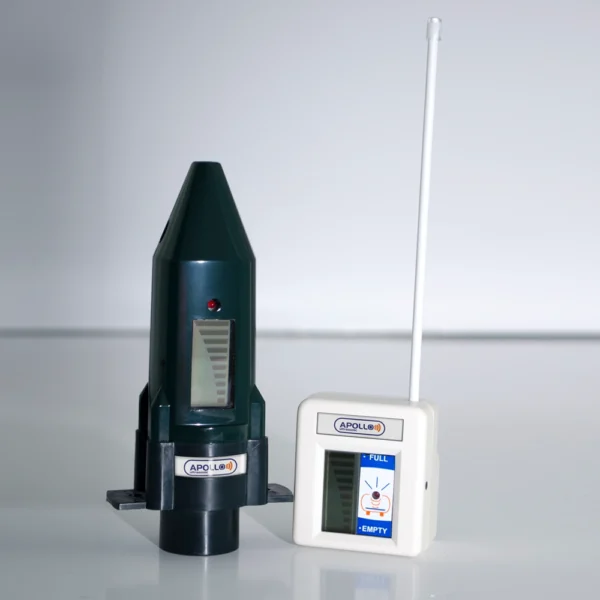

The revolutionary Apollo Visual reports to the fuel level plug in receiver which also has a built-in LCD display on the transmitter incorporating an on tank level. This allows the fuel level in the tank to be checked and monitored before, during and after filling giving a visual overfill warning at the point of fill helping combat costly over spills. The kit comprises of a tank mounted transmitter unit with a built-in visual LCD display and a plug-in receiver unit.

Benefits

» Quick & Easy installation with no specialist tools required (fitted in minutes)

» Easy to follow step by step instructions

» Visual on tank level

» Wireless, with up to 200m FM range

» Constant fuel level displayed in easy to read graduations of useable fuel on a conveniently located LCD display

» Retro fit to new and existing tanks, steel or plastic, single skinned or bunded up to 3m in depth

» Long life lithium battery in tank transmitter

» Receiver plug available with various pin settings i.e. 2 pin (eu) & 3 pin UK Compatible with Max Fill, hand held overfill warning device.

» In-built audible and visual low level alert.

Product Features

+ A tank mounted ultrasonic transmitter unit, compatible with the standard 32mm port fitted to modern plastic fuel storage tanks.

+ Optional multi adaptor ensures compatibility with most steel tanks

+ Plug-in receiver unit with integral antenna

+ Premium quality LCD display, readable from a wide range of angles under varying light conditions.

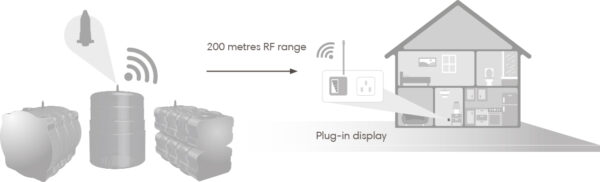

The transmitter monitor sits above the maximum capacity level, tracking the liquid level inside your tank and passing this information wirelessly to your plug-in receiver unit. With its quick and easy installation, there’s no need for additional equipment or cables. It also reduces any spillages from manually measuring your tank’s content. The Oil Tank Gauge is compliant with environmental and technical requirements. Apart from underground tanks, it’s also compatible with plastic or metal tanks up to 3 metres high, and from any manufacturer. It’s ideal for measuring a wide range of liquids including:

• Heating oil
• Diesel
• Waste Oil
• Water
• Fuel Oil
• Agriculture fuel oil
• Detergents
• Lubricants
• Biodiesel
• Anti-freeze

Tank Gauge Details

• These fit all tanks with a maximum depth of 3 metres.
• Wireless connection with a 200-metre range
• Easy-to-use LCD display receiver unit
• Low-level warning alert
