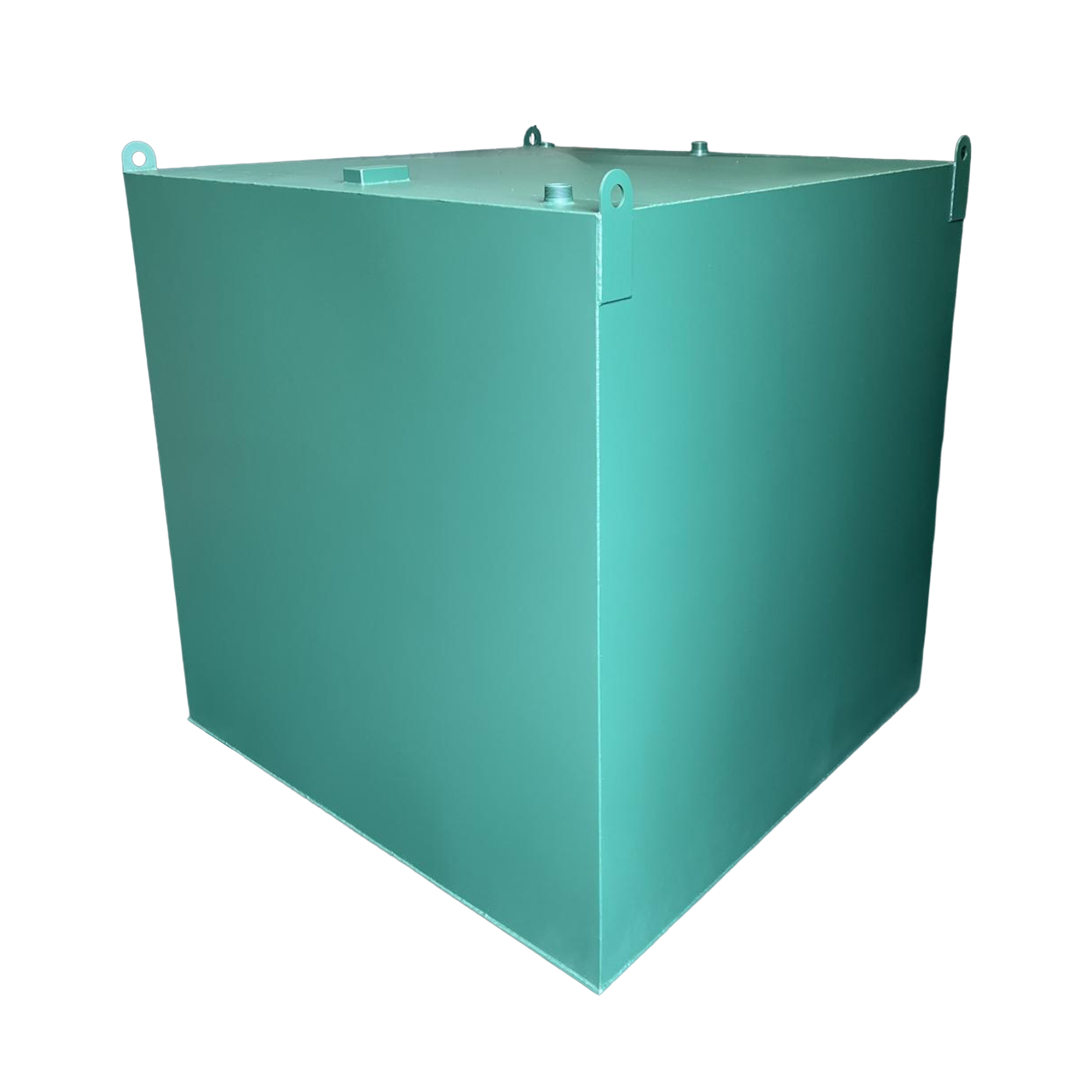

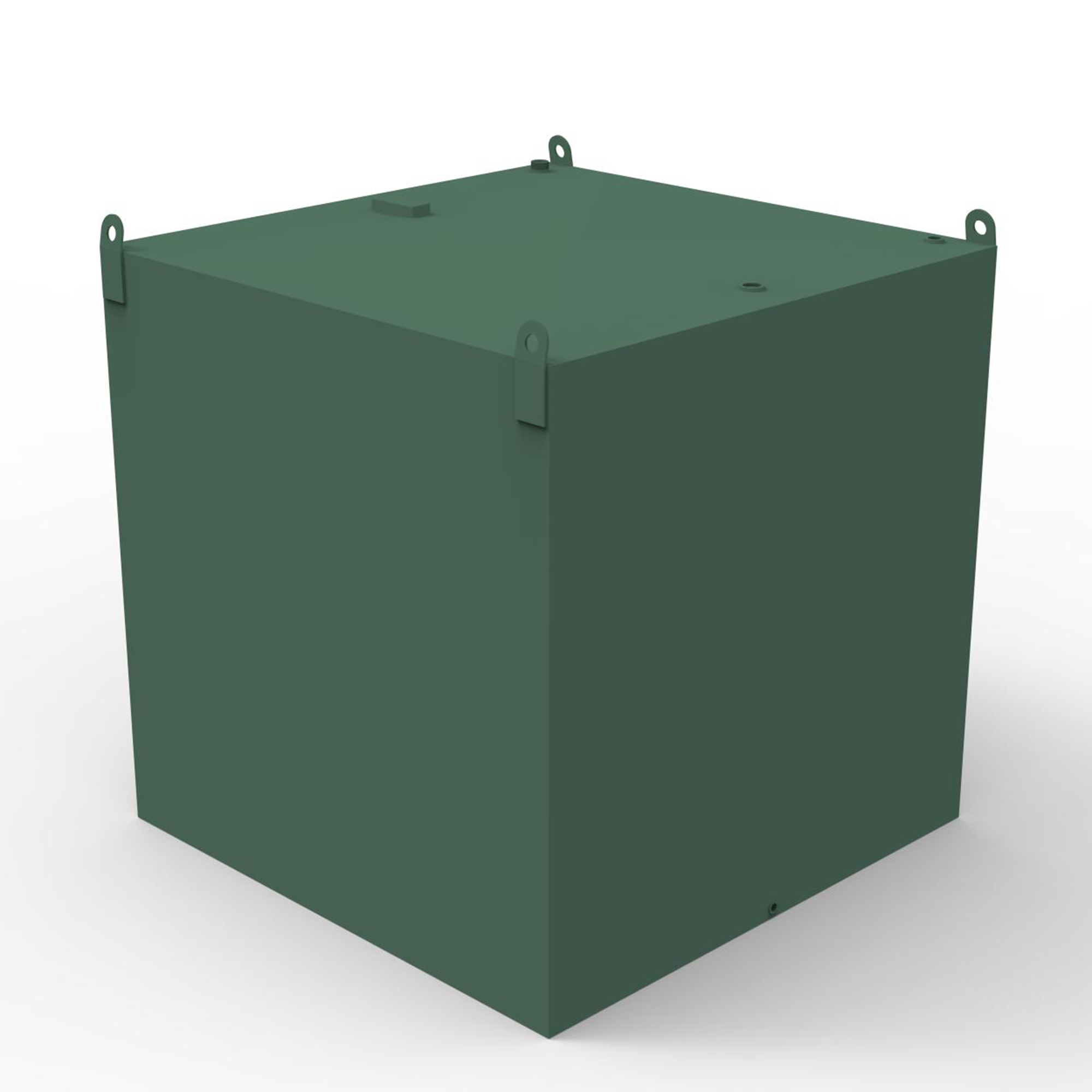

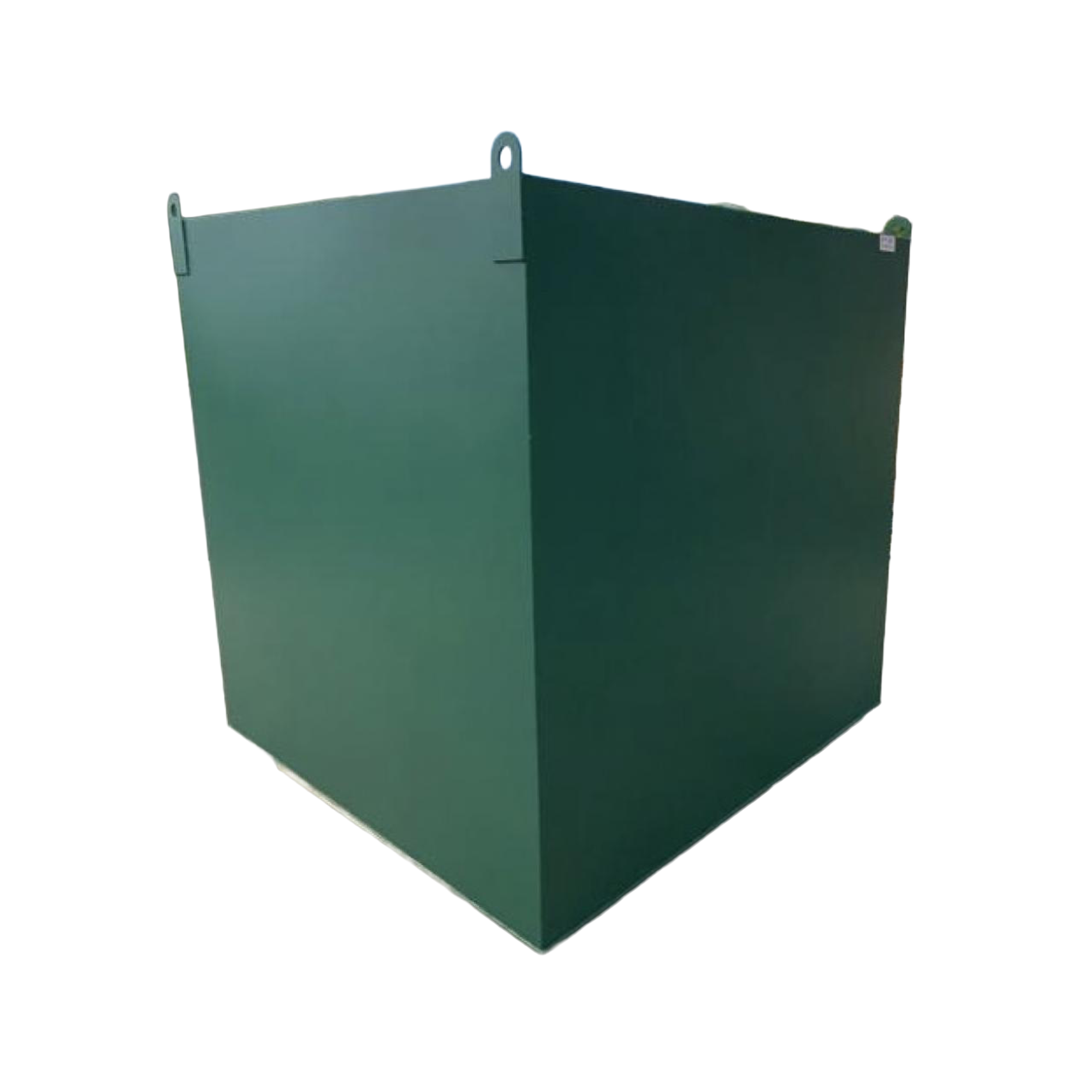

5000 Litre Steel Bunded Oil Tank

This 5000 litre steel bunded oil tank is a large-capacity, UK-manufactured double-skinned storage solution for heating oil and compatible fuels. The inner tank stores the fuel while the outer steel bund provides integral secondary containment designed to hold at least the required containment volume around the inner tank.

With approximate dimensions of 1830 x 1830 x 1830 mm and a tank weight of approximately 1250 kg, this model is intended for larger domestic, commercial, agricultural or industrial storage requirements where robust steel construction is preferred.

What Is a Steel Bunded Oil Tank?

A steel bunded oil tank uses a tank-within-a-tank design. The inner tank contains the fuel while the outer steel bund provides secondary containment if the inner tank leaks, helping reduce the risk of fuel reaching the surrounding environment.

Large-Capacity Steel Construction

This model is fabricated in steel and made to order in the United Kingdom. Large tanks require suitable site access, a properly engineered supporting base and appropriate lifting or offloading equipment. Standard finish is Holly Bush Green (RAL 14C39), with alternative colours available by quotation.

Who This Tank Is Ideal For

• Commercial and industrial fuel-storage installations
• Agricultural and large-property heating-oil storage
• Sites requiring approximately 5,000 litres of nominal storage capacity
• Installations requiring integral secondary containment

Key Features

• 5,000 Litre Capacity: Large nominal storage capacity for heating oil and compatible fuels.
• Steel Bunded Construction: Inner storage tank protected by an integral outer steel bund.
• Made to Order: Fabricated in the United Kingdom for the specified capacity.
• Articulated-Vehicle Delivery: Customer offloading arrangements are required.
• 10 Year Guarantee: Manufacturer guarantee for bunded tanks, subject to applicable conditions.

Tank Specifications

*Dimensions, capacities and weights are approximate. Manufacturer guarantee is subject to applicable installation, use and maintenance conditions.

Delivery and Access

Estimated lead time is approximately 4–6 weeks. Delivery is by articulated vehicle and the customer is responsible for providing suitable offloading equipment and moving the tank to its final position. Delivery cost is quoted separately.

• Delivery is normally advised around 48 hours in advance.
• Standard deliveries are typically Monday to Friday between 9am and 5pm.
• Please confirm suitable articulated-vehicle access and a safe unloading area before ordering.
• HIAB delivery may be available on request at additional cost.
• Specific-day or timed deliveries may carry an additional charge.
• Some postcode areas require a bespoke transport quotation.

Installation, Maintenance and Guarantee

The tank must be installed on a level, load-bearing base designed for the combined weight of the tank and its contents. General guidance recommends a suitable concrete, paving-stone or stonework base extending beyond the tank footprint, but larger-capacity installations should be assessed for their specific structural and regulatory requirements.

Installation requirements vary by site, so final siting and installation should follow current regulations and guidance and be completed by a suitably qualified installer.

Steel tanks should be inspected regularly and maintained to protect the coating. Manufacturer guidance recommends periodic repainting with a suitable protective coating, approximately every 18 months.

Do not arrange installation work or a fuel delivery until the tank has arrived and been checked.
