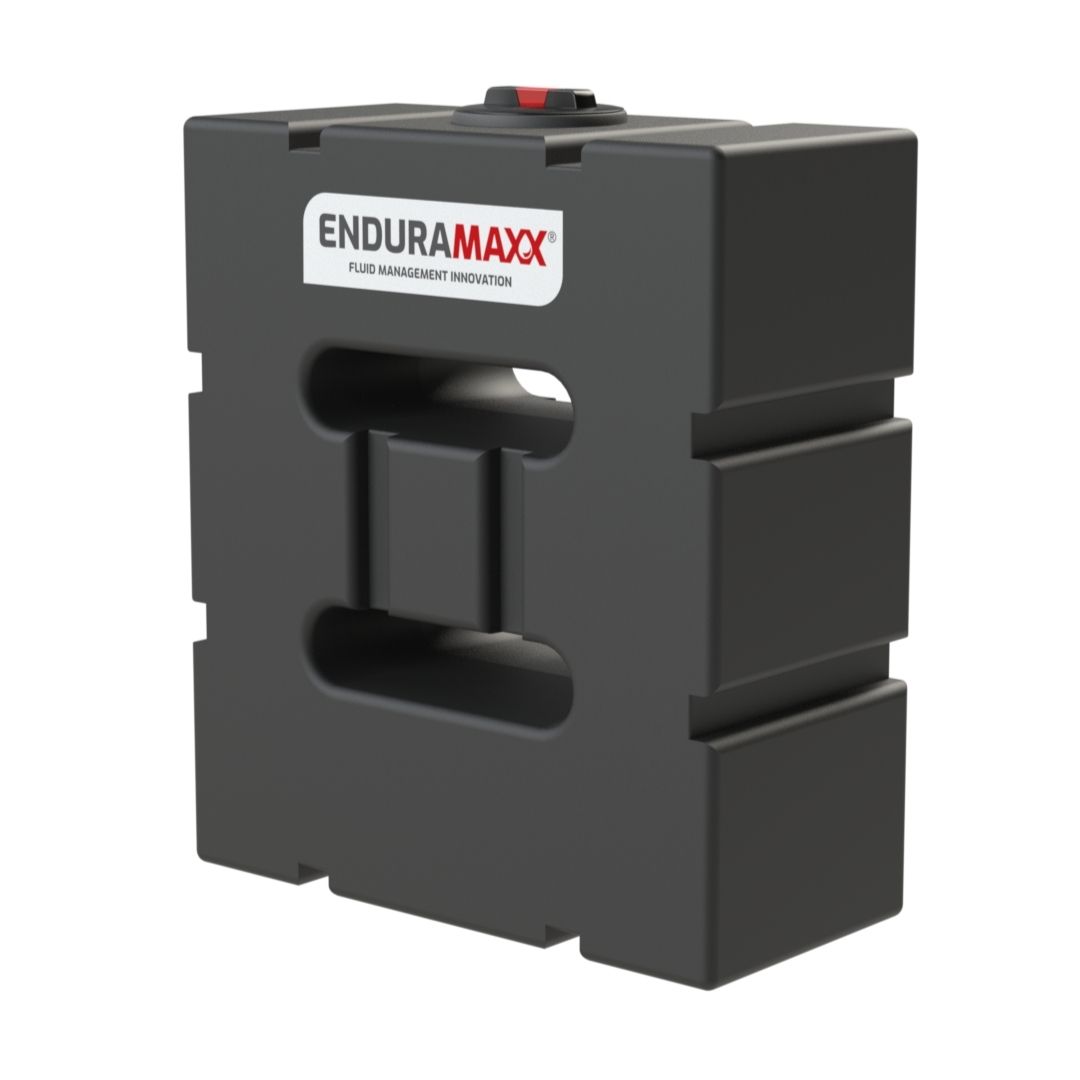

500 Litre Baffled Upright Water Tank
500 Litre Baffled Upright Water Tank

500 Litre Baffled Upright Water Tank

£216.25 (excl. VAT)

500 Litre Baffled Upright Water Tank is made from WRAS approve polymer with an insulation jacket engineered to prevent condensation and effectively reduce thermal and energy loss.

Estimated delivery dates: Tuesday 15. October - Friday 18. October

Check Delivery Fee

We can install your new tank for you. Learn More
SKU: EM-17160501 Category: Tag:

Description

500 Litre Baffled Upright Water Tank

Specification

  • WRAS approved polymer, black, boat blue or natural colour options only, supplied with a Bye-law 30 kit (Bye-law 60 in Scotland)
  • Type AB Airgap can be fitted to all WRAS-approved tanks as an optional extra
  • Outlet 1.5” 177815 (other options available)
  • Lid 255mm
  • Dimensions (mm) L 1200 x W 500 x H 1155
  • Available in black, natural or green, other colours available on request.
  • 100% rust proof
  • UK manufactured
  • 10 year guarantee

Please note: Tank sizes quoted are subject to a +/- 3% variation

500 Litre Baffled Upright Water Tank

Our 500 Litre Insulated Horizontal Water Tank is made from WRAS approve polymer with an insulation jacket engineered to prevent condensation and effectively reduce thermal and energy loss.  Insulated water tanks are designed for use where temperature regulation is key and for the prevention of overheating or freezing of liquids.

Insulated water tanks are often used in conjunction with in-tank heaters or coolers to reduce running costs.  The Insulation is available as 13mm or 25mm thickness and the foam used is a more effective insulator than traditional tank jackets. More details on the Insulation Performance Information here

This insulated cold-water tank is a one-piece mould, seamless, rotationally moulded tank that guarantees strength, impacts resistance and durability. It is manufactured from MDPE medium density polyethene and UV stabilised for many years outside use.

500 Litre Baffled Upright Water Tank uses

  • Food Industry
  • Water & Potable water storage tanks
  • Beer, cider brewing and winemaking
  • Chemical storage and supply tanks
  • Agricultural and Industrial applications
  • Dosing tanks

Insulated Drinking Water Tank

All drinking water tanks are manufactured from WRAS approved polymer (Water Regulations Advisory Scheme) and available in black, boat blue or natural.

Regulation 31 Approved Tanks

Our plastic water tanks manufactured from WRAS approved material are DWI approved and meet the specific requirements of Regulation 31. This ensures that water suppliers producing and distributing drinking water only use products that do not cause any detrimental effects on the safety or quality of the drinking water.

Fluid Category 5 Insulated Tanks

In many installations, potable drinking water tanks which are connected to the mains water supply will need to have a type of AB air gap to be fluid category 5 approved.

Customisation of fittings & equipment mounting.

These insulated water tanks are available with tank modifications to suit your project.  Liquid level sensor assemblies, fill pipesPN16 and ANSI flanged connections, welded BSP outlet and sockets. Bolt down lid and side access hatch are available for access for cleaning, installation, and maintenance of water pumps.

Delivery of Your Insulated Water Tank

Our drinking water tanks are manufactured at our factory in Lincolnshire. Most plastic tanks, underground water tanks and rainwater tanks are stocked for collection or quick delivery throughout the UK.

We are available to deliver direct to the site for installers to save double handling of these tanks. In some cases where clients cannot offload the tank, we can offer Hiab deliveries which are priced upon request.

Our full range of rainwater harvesting tanks, car valeting, water butts, wastewater and tanks below ground is available here

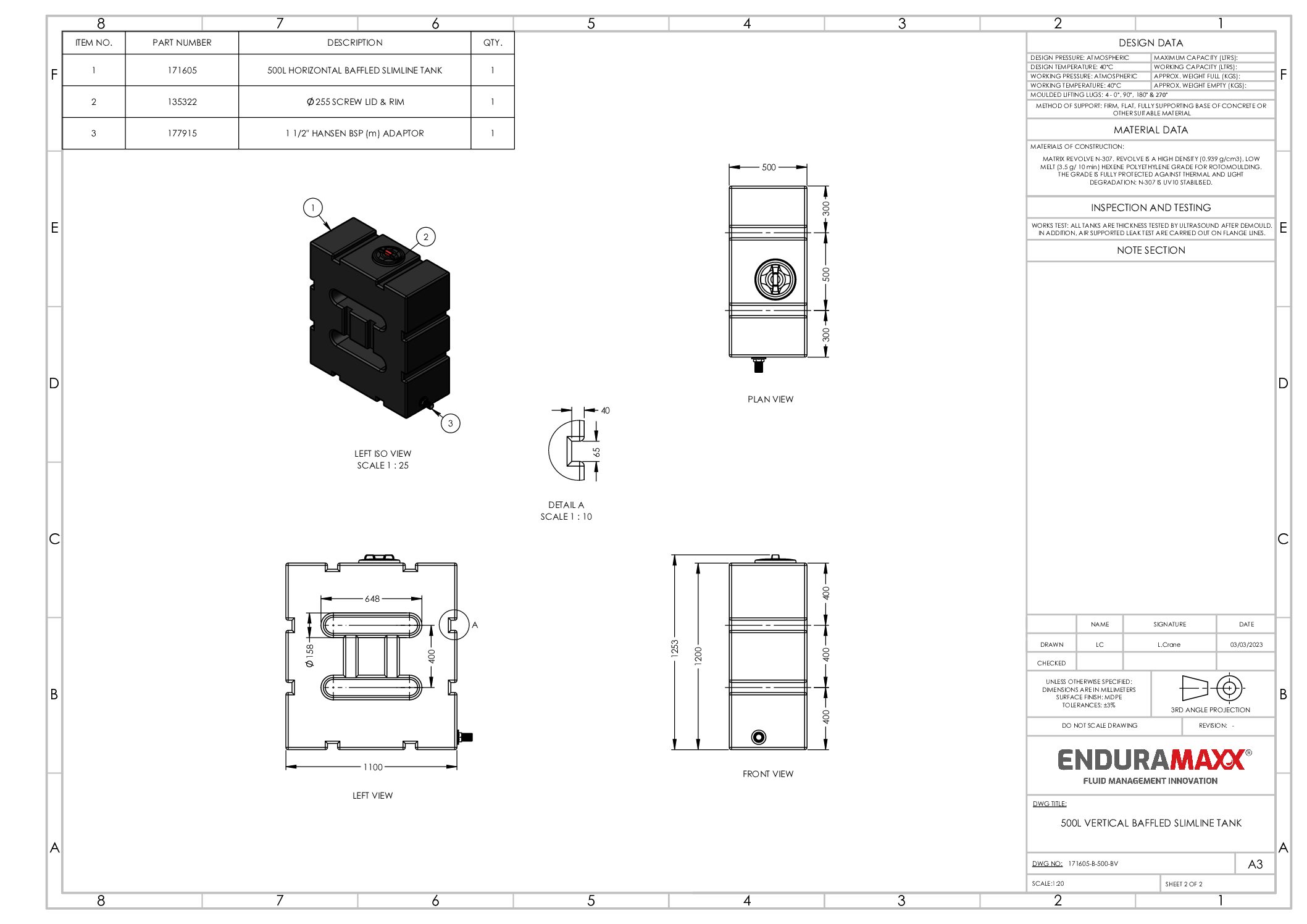

How big is a 500 Litre Baffled Upright Water Tank?

Capacity500 Litres
Dimensions1100mm L x 500mm W x 1250mm H
Height1155 mm
Standard Outlet1.5″ Male BSP
Lid255 mm dia lid

Additional information

Dimensions110 × 50 × 125 cm
Capacity

Tank Size - Length

Tank Size - Width

Tank Size - Height

Delivery

7-10 Days

Reviews

There are no reviews yet.

Be the first to review “500 Litre Baffled Upright Water Tank”

500 Litre Baffled Upright Water Tank Service Options

Our Professional Installation Service

This oil tank must be installed in accordance with OFTEC guidelines. We provide a professional oil tank installation service, complying with OFTEC requirements and environmental guidelines. Our professional engineers are on hand to help you with your installation. Request a free no-obligation installation quote.

Request An Installation Quote

Our Tank Disposal Service

We can professionally decommission and dispose of your old oil tank, saving you time and a lot of hassle. Our fully qualified engineers can transfer your old oil to your new tank and dispose of any contaminated oil before removing the tank. Once decommissioned, your tank will be recycled or repurposed at a licenced recycling centre, complying with the highest environmental standards.

All our oil tanks comply with OFTEC/APHC requirements, oil pollution prevention guidelines (England and Wales) 2002 PPG2 and carries CE approval.
