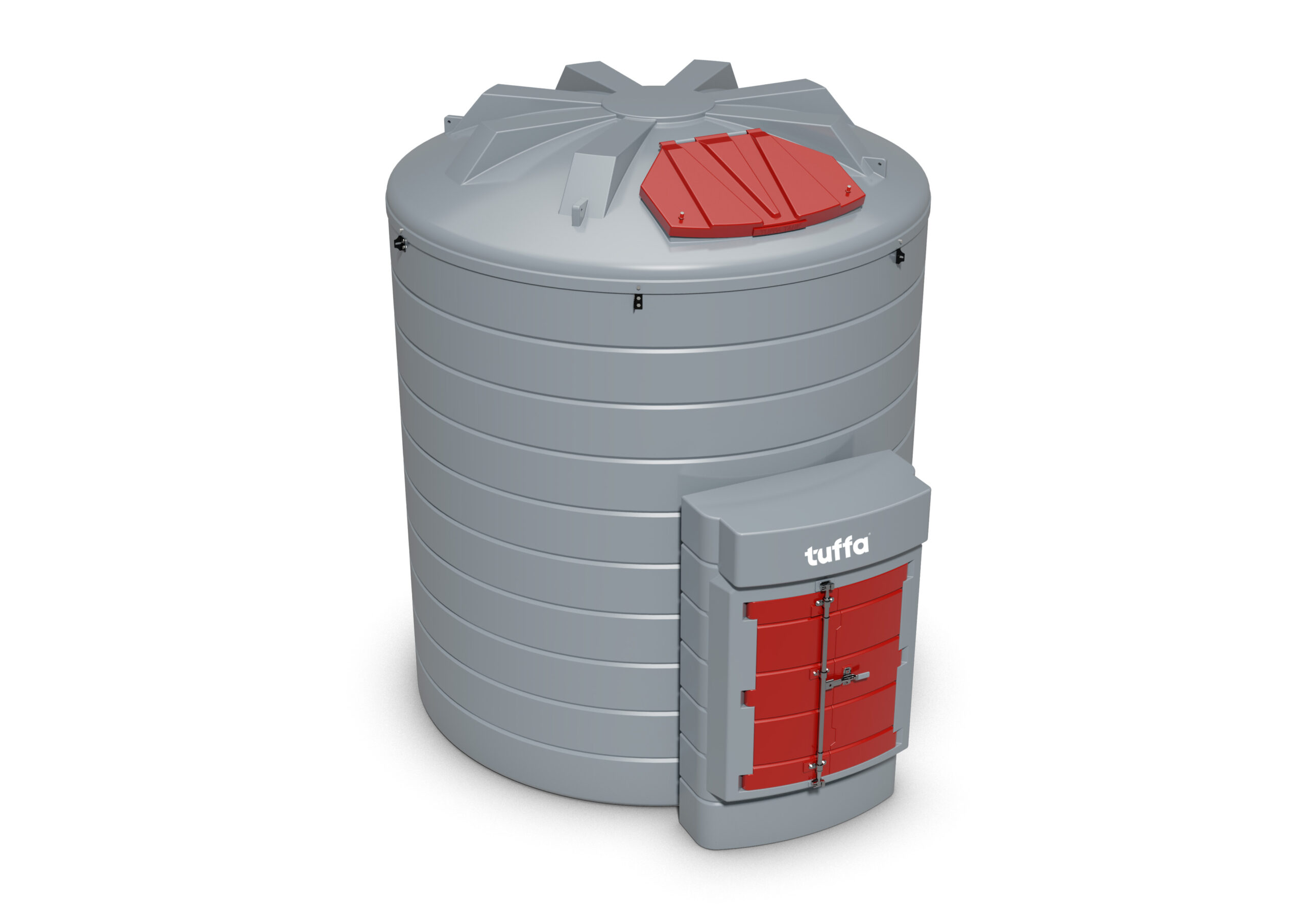

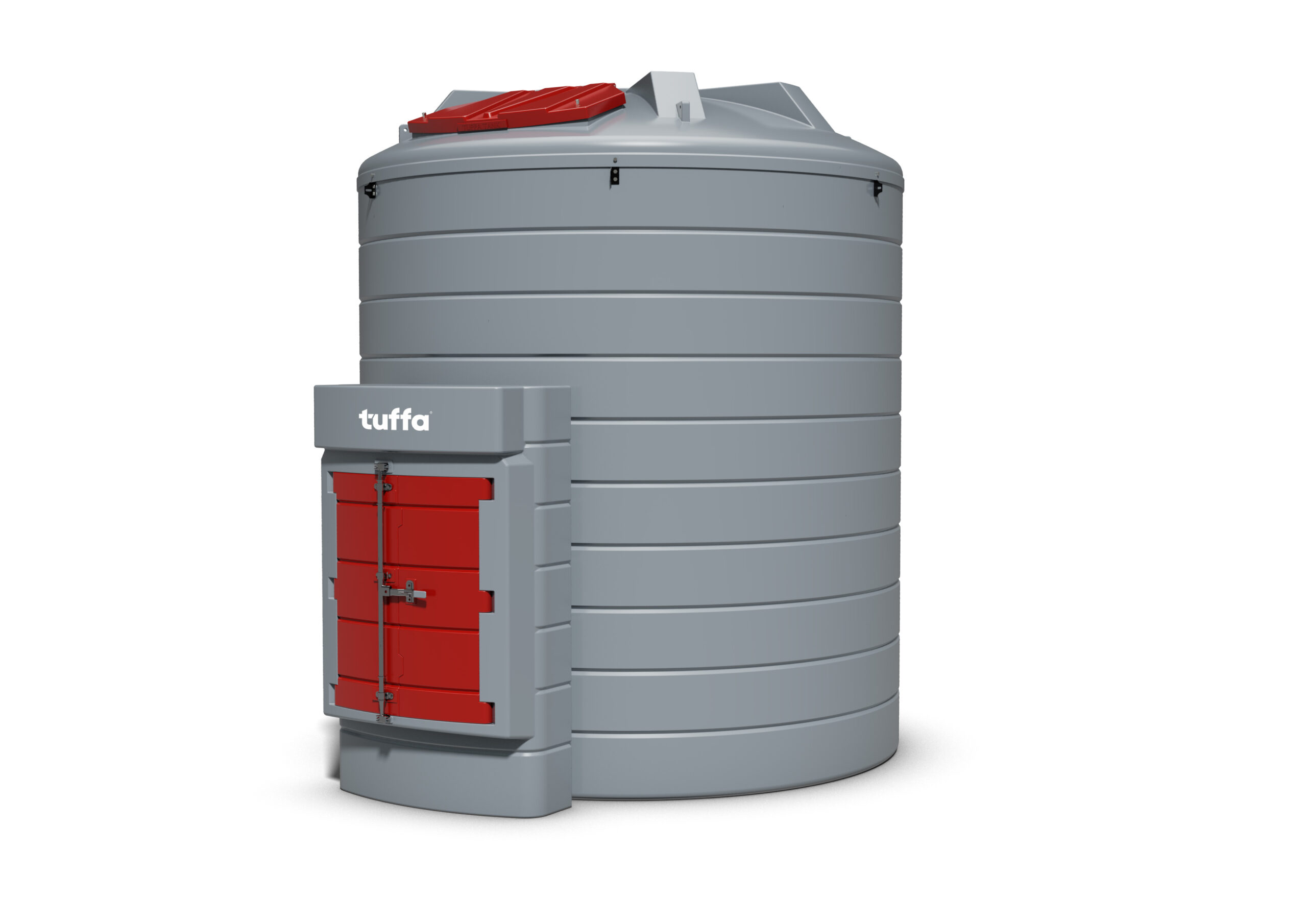

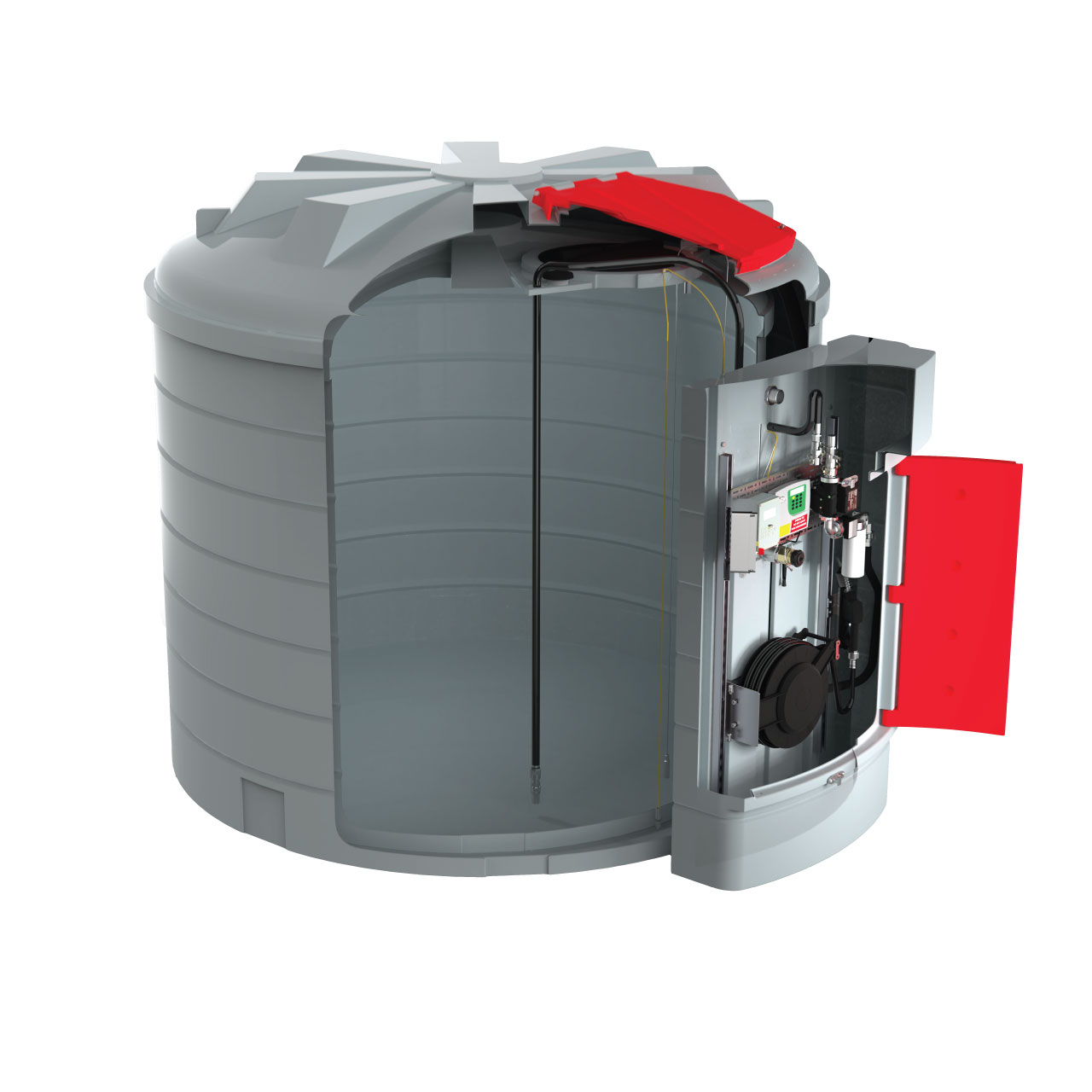

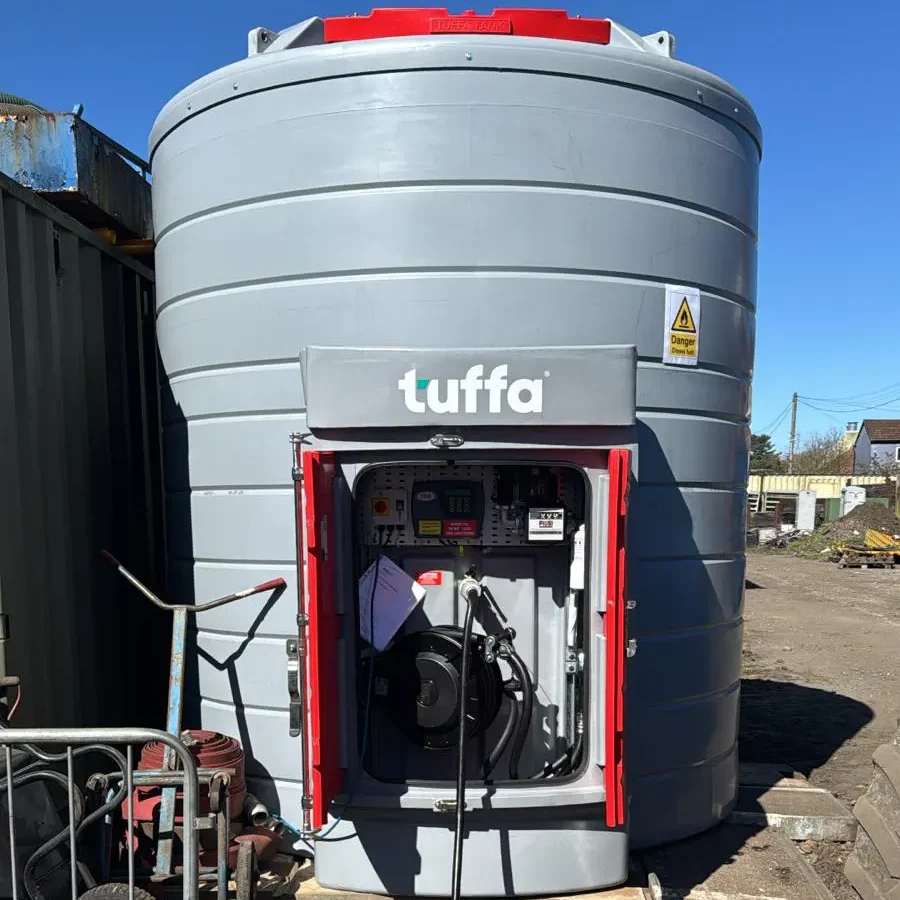

15000 Litre Plastic Bunded Diesel Tank

Description

Presenting one of our flagship products, the 15,000-litre plastic bunded diesel tank – a standout as one of the largest in the UK.

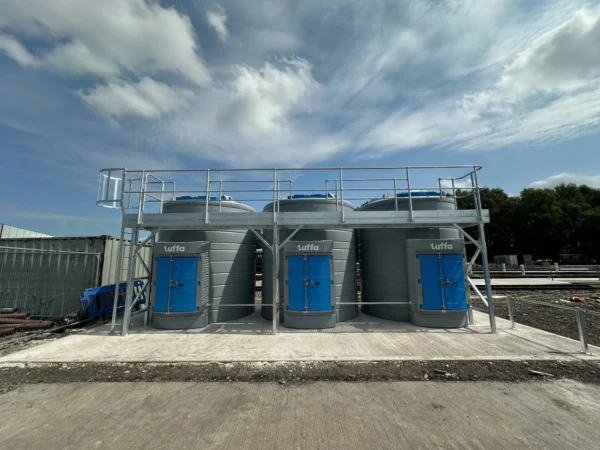

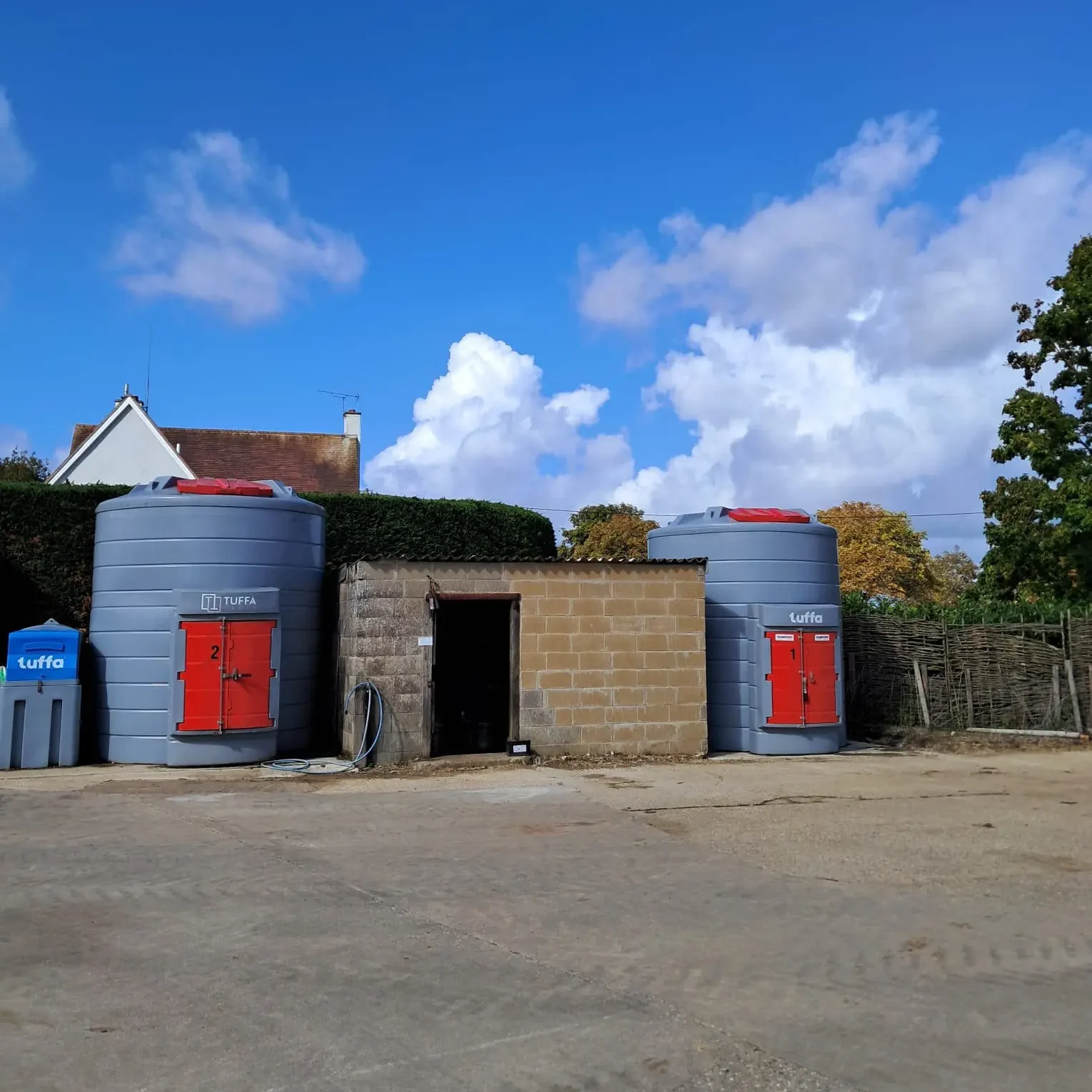

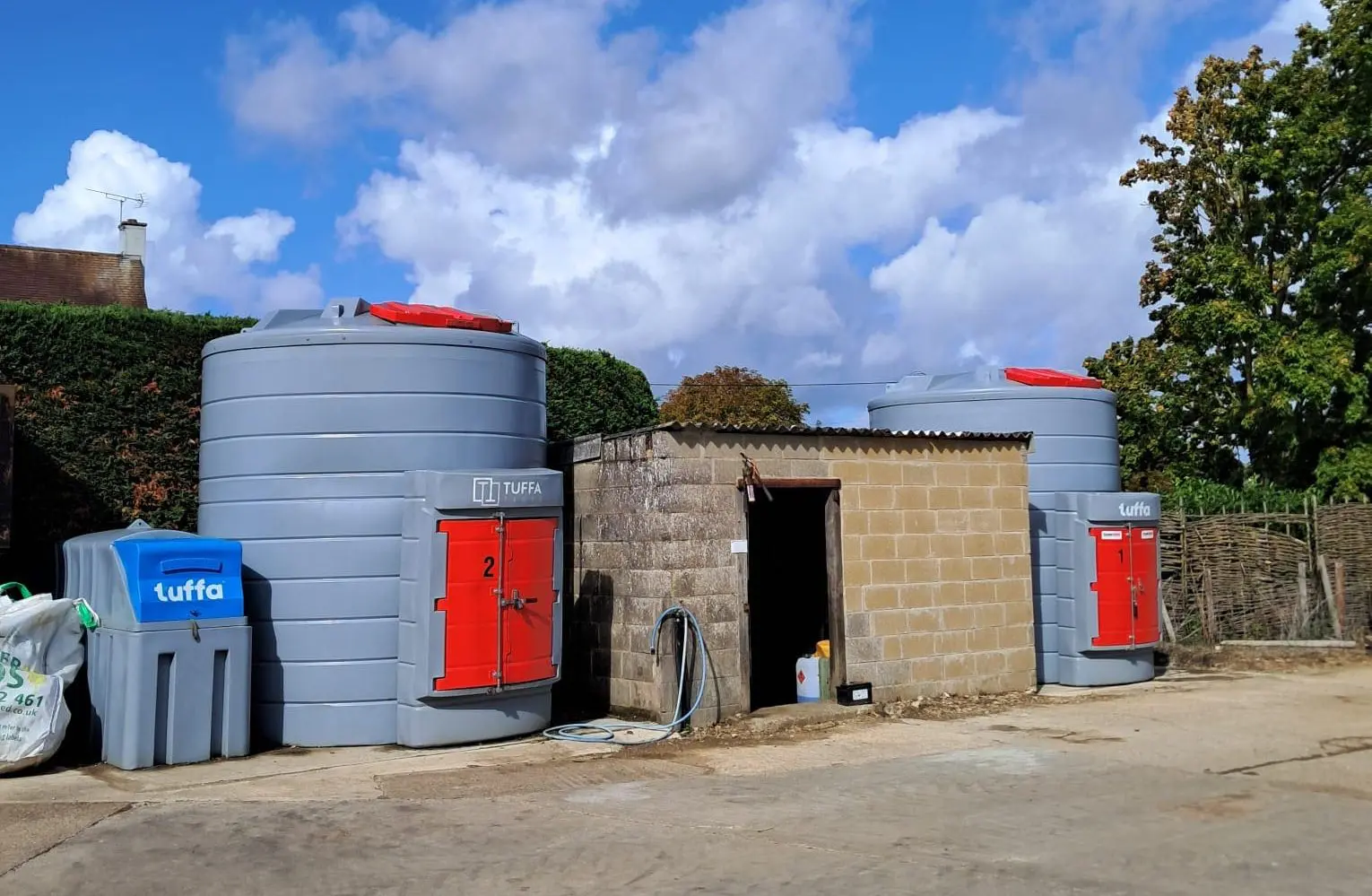

This tank can be seamlessly interlinked, creating an impressive effective capacity of 30,000 litres .

It delivers the remarkable capacity of steel tanks while maintaining a lower cost, making it the optimal choice for efficient and cost-effective diesel storage solutions.

Visuals are for guidance only; final product details may differ.

Specification

• External pump 230V
• 6m of delivery hose
• Automatic shut-off nozzle
• K33 mechanical flowmeter
• Nozzle holster
• Control panel with key switch 230V
• 2″ BSP fill connection with cap and chain
• Overfill prevention valve
• Vent
• FMS gauge and alarm 230V
• 10-micron water and particulate filtration

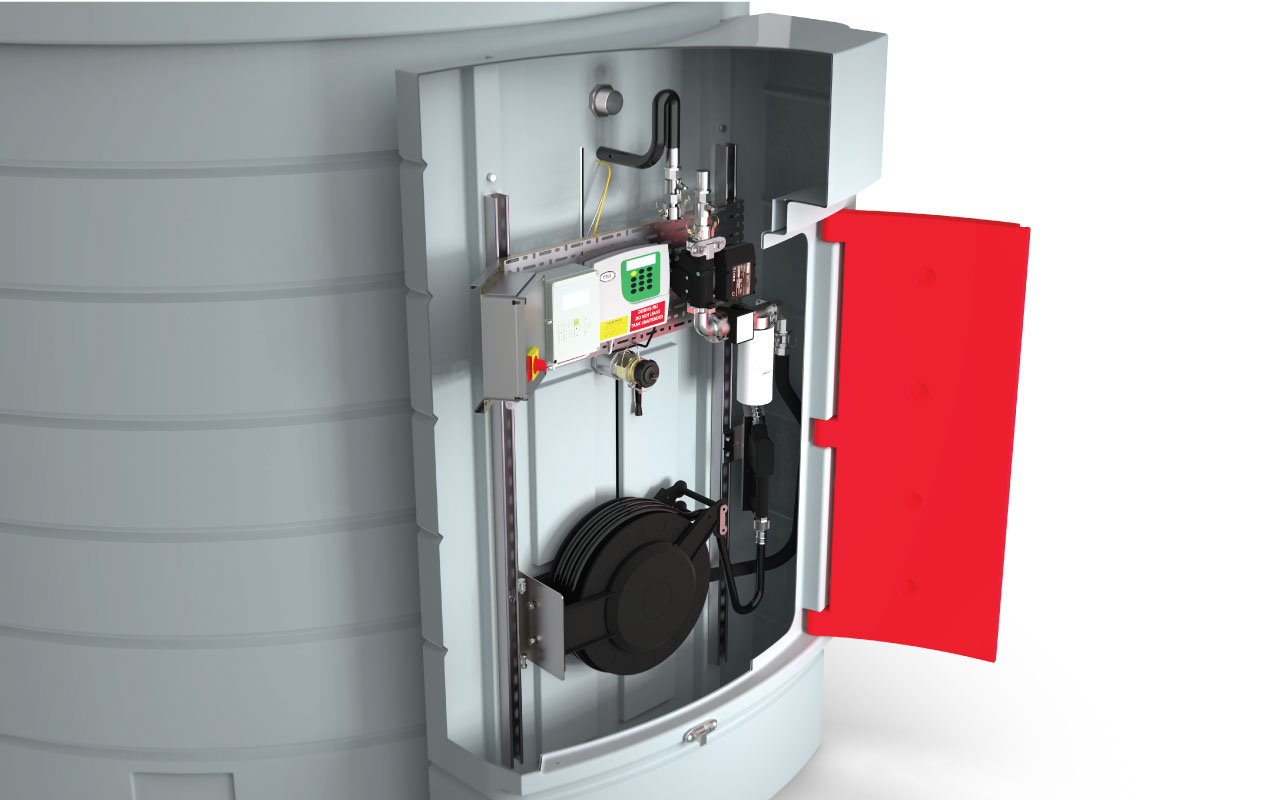

• Lockable cabinet

Key benefits

• Forecourt-style dispensing and convenience
• Manufactured to prolong the usable life of diesel
• Fitted with premium ancillary equipment
• Bunded in accordance with Oil Storage Regulations
• Made from an extremely durable, UV-stabilised, corrosion-resistant and recyclable polyethylene
• A range of optional extras are available to customise the tank for your site requirements
• Lockable cabinet prevents theft
• Serviceable lifespan over 20 years
• 10-year warranty when registered
• Compatible with HVO fuel and HVO diesel blends

Options

• K44 pulsed outlet flowmeter – allows connection to a separate fuel management system.
• Hose reel – a self-retracting hose reel with a 10m delivery hose.
• Pump options – higher flow rate pumps available.
  *Higher flow-rate pumps may be supplied with a different nozzle size. Please contact us if you are unsure whether this will be suitable for your requirements.
• Fuel management system – a fuel management system fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank.
• HDA level sensor – the fuel management system above also allows for connection to a compatible 4-20mA level probe (accurate to +/-0.5% ) to enable monitoring of the storage tank contents, including current levels and dispensed quantities, which also reports to the supplied software.
• No dispensing equipment  – suitable for diesel generators or sites with existing dispensing equipment.

Downloads

• Spec Sheet – 15000VBFS
• Tank Drawing – 15000 Bunded (with cabinet)
• Tank Drawing – 15000 Bunded
• AdBlue® and Diesel Tanks Product Guide
• Cabinet Drawing – Internal Dimensions
